Fittings Water Supply
Stress-crack resistant PE 100-RC fitting programme of electro-socket fittings and couplers — from OD 20 mm to OD 2500 mm, with standard and project-specific fittings produced in Germany and Austria.
Send InquiryFittings Water Supply
Stress-crack resistant PE 100-RC fitting programme of electro-socket fittings and couplers — from OD 20 mm to OD 2500 mm, with standard and project-specific fittings produced in Germany and Austria.
Product Range
Contents
Product Description
Our stress-crack resistant PE 100-RC fitting programme of electro-socket fittings and couplers covers a dimensional range from OD 20 mm up to OD 2500 mm. Beside the standard fittings, tailored solutions are produced for individual construction projects.
Fittings are manufactured in modern German and Austrian production facilities from high-performance raw materials. This ensures consistent high quality and a long service life of the components.
The programme is approved for gas and potable water supply: PE 100-RC fittings and surebends formed out of pipe hold DVGW approvals across the full dimensional range, and the fittings are covered by FM Approval Class 1613.
Key Benefits
Applications
Technical Content

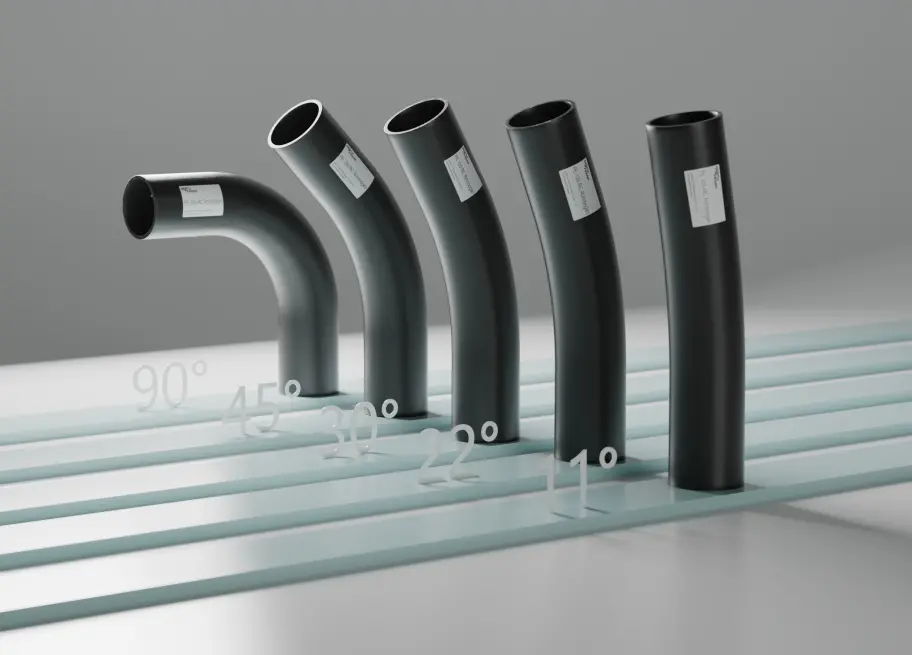

Surebend formed out of pipe
Sweep bends formed out of PE 100-RC pipe are proven and fulfil the highest DVGW requirements for gas and potable water supply. Beside the standard programme, other SDR levels and special angles are available on request.
- Dimension range: d 90 mm – d 800 mm
- SDR levels: 17 and 11
- Bend angles: 11°, 22°, 30°, 45° and 90°
- Bend radius: 1.5 × d
- Special angles: on request
In-house production enables short manufacturing and delivery times.
Customised fittings made of PE 100-RC
For simple and rapid installation on the construction site, our own plastic workshop produces specific fittings in various pressure ratings according to customer requirements.
Special designs are manufactured in-house, which keeps manufacturing and delivery times short.
Hydrant connections in the drinking water supply
Hydrant connections are used to connect shut-off valves at branches through a prefabricated part with an integrated connection to an underground hydrant.
- Minimal installation height
- Fix flange stub end OD 90 / DN 80
- PE 100, PN 16
- All components DVGW approved
- Simple and fast installation
- No additional welding work

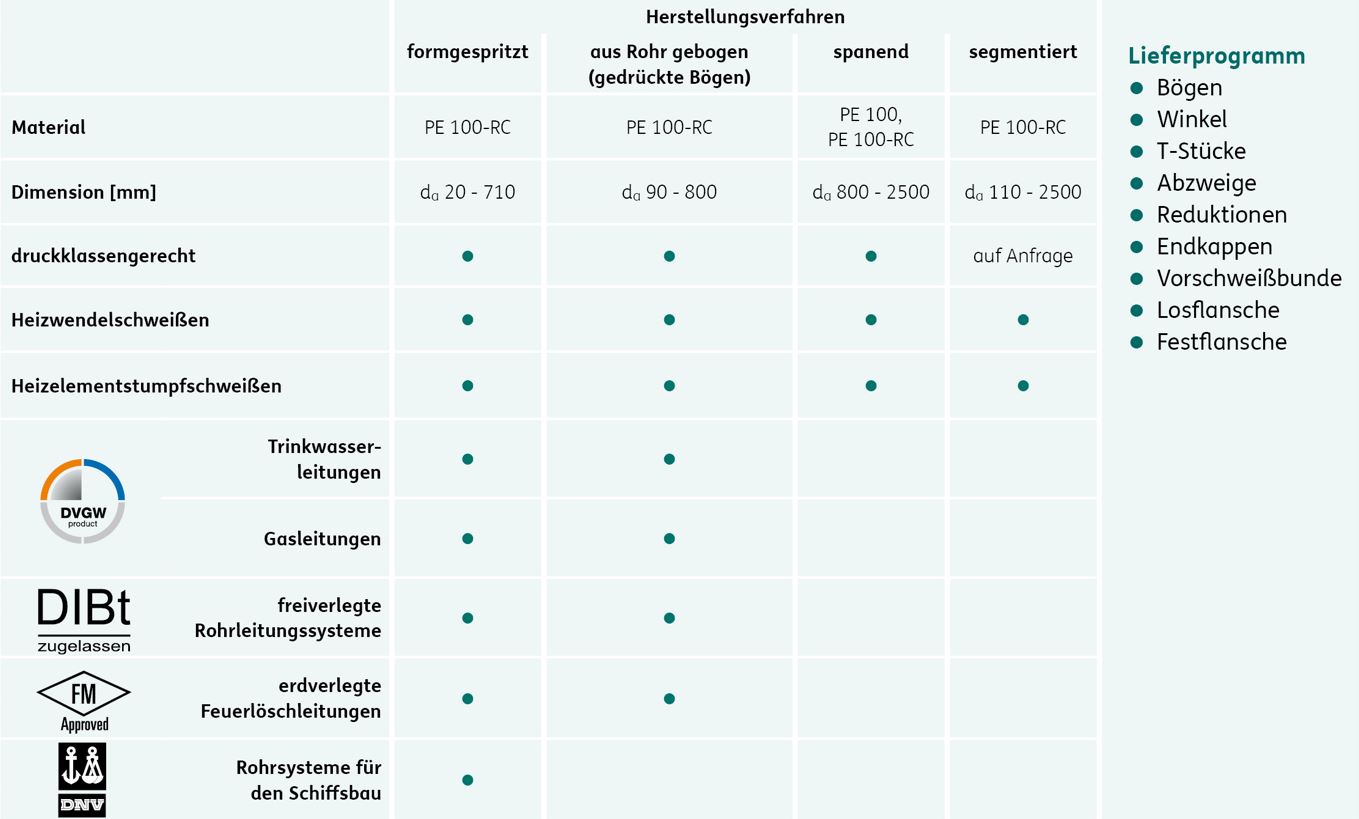

Production and dimensional range
Our fittings are produced in modern German and Austrian production facilities from high-performance raw materials. This ensures consistently high quality and a long service life of the components.
The programme of PE 100-RC electro-socket fittings and couplers covers diameters from OD 20 mm up to OD 2500 mm. Beside the standard fittings, tailored solutions are available for individual applications.

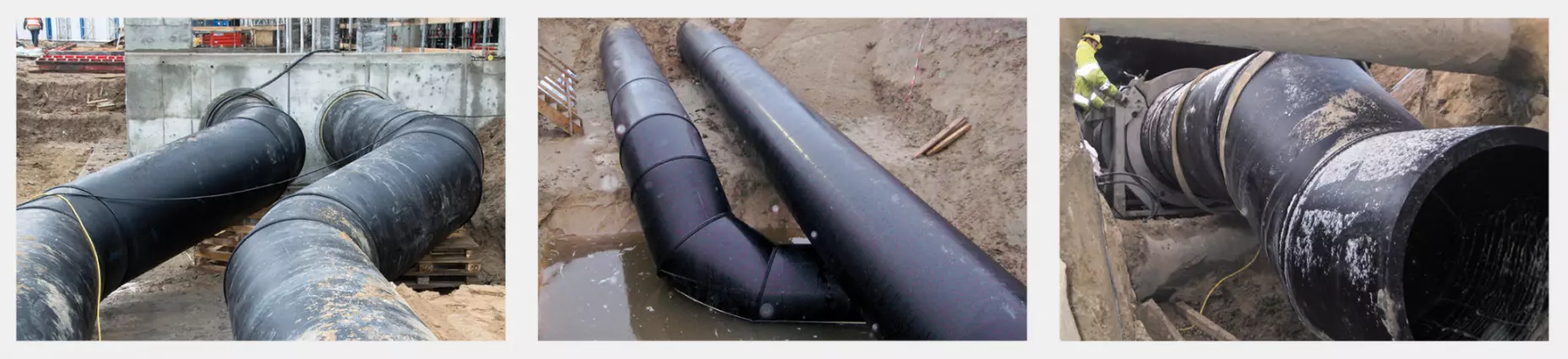

Approvals and product range information
PE 100-RC fittings and surebends formed out of pipe hold DVGW approvals for the drinking water supply across the full dimensional range, and the fittings are covered by FM Approval Class 1613.
The approval numbers are listed in the technical data below.
Available Products & Specifications
- PE 100-RC fitting programme of electro-socket fittings and couplers, OD 20 mm to OD 2500 mm
- Standard fittings throughout the programme dimensional range
- Tailored fittings for individual construction projects, produced in our own plastic workshop
- Surebends formed out of PE 100-RC pipe, d 90 – 800 mm, SDR 17 and SDR 11
- Bend angles 11°, 22°, 30°, 45° and 90°, bend radius 1.5 × d, special angles on request
- Hydrant connections with PE 100, PN 16 components and fix flange stub end OD 90 / DN 80
Technical Data
DVGW approvals — PE 100-RC fittings and surebends
| Application | Approval number | Dimension range |
|---|---|---|
| Short connections, drinking water supply | DV-8602AT2368 | ≤ 63 mm |
| Short connections, drinking water supply | DV-8607AT2369 | da 75 – 225 mm |
| Short connections, drinking water supply | DV-8613AT2370 | ≥ da 250 mm |
| Long connections, drinking water supply | DV-8603AT7028 | ≤ 63 mm |
| Long connections, drinking water supply | DV-8608AT7029 | da 75 – 225 mm |
| Long connections, drinking water supply | DV-8613AT7030 | ≥ 250 mm |
| Surebend formed out of pipe, gas and drinking water pipelines | DV-8607CS0233 | da 75 – 225 mm |
| Surebend formed out of pipe, gas and drinking water pipelines | DV-8612CS0234 | ≥ 250 mm |
